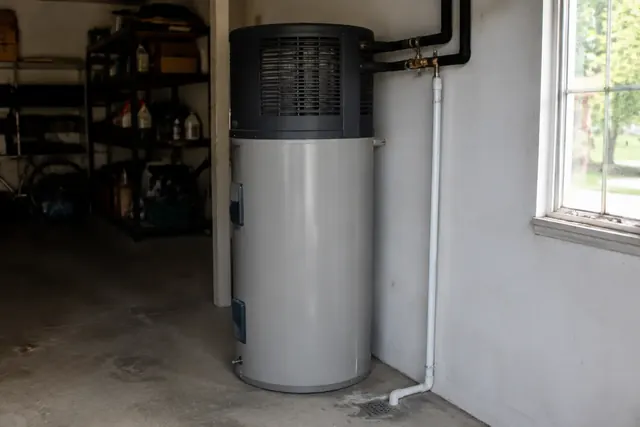

Heat pump water heater installed in a Spokane garage with condensate drain
Spokane, WA

Heat Pump Water Heaters in Spokane, WA | HPWH Siting, Air Volume and Condensate Planning

Spokane WA Heat Pump Installation is a heat pump contractor providing heat pump water heaters for homeowners and property owners across Spokane County, WA and out to the Idaho state line. Every job starts from a load calculation rather than the size of whatever came out.

A heat pump water heater pulls heat out of the surrounding air and puts it into the tank, which makes it two to three times more efficient than an electric resistance water heater doing the same job. The catch is that it needs somewhere to pull that heat from. Dropped into a small sealed closet, it cools the space it is standing in until it gives up and falls back to resistance elements, at which point you have paid for a heat pump and are running an ordinary water heater. Siting is genuinely the whole job here, and in Spokane the winter garage temperature question comes up constantly.

Request a quote

Tell us what you need and we will call you back.

Ambient air temperature where HPWH efficiency falls away
-20°17°32°47°65°85°100°
~45°F ambient floor

Below roughly 45°F ambient, most heat pump water heaters lose efficiency sharply and lean on their resistance elements. That is why an unheated Spokane garage in January is a siting decision worth thinking about rather than a default.

700-1000 cu ftAir volume most units need to run in heat pump mode
2-3xEfficiency versus electric resistance water heating
2.5R406 energy credits a split-system HPWH can contribute
Heat Pump Water Heaters Spokane

Spokane WA Heat Pump Water Heaters

What actually matters on a heat pump water heater

These units are simple to install and easy to install badly. Almost every complaint traces back to one of the following.

  • Air volume at the proposed location checked against the manufacturer's minimum
  • Condensate route planned to a drain or pump before installation, not improvised afterwards
  • Winter ambient temperature at the location considered, particularly in unheated garages
  • Noise and cool exhaust air discussed if the location is next to living space

The cool exhaust air is the part people are least prepared for. A heat pump water heater takes heat out of the room it sits in, so that room gets noticeably cooler and slightly drier while the unit runs. In a garage or a large basement that is irrelevant or even useful in summer. Next to a finished basement family room it is a real comfort issue, and it is far easier to talk about before installation than after.

The usual approach

Put the new water heater exactly where the old one stood, because the plumbing connections are already there.

How we do it

Check the air volume, winter ambient and condensate route at that location first, and say plainly if a different position or a ducted arrangement would perform better.

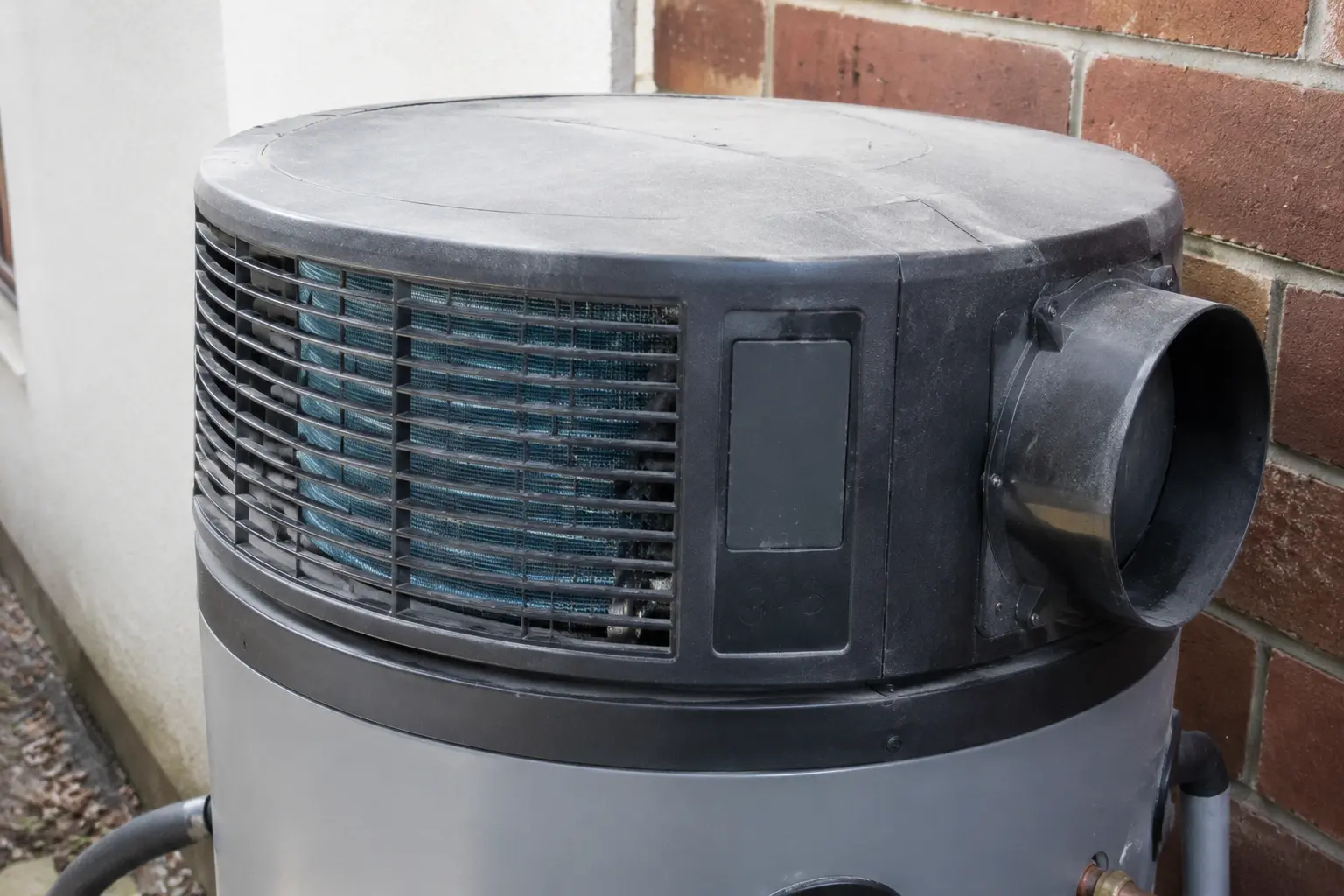

Compressor housing and control panel on top of a heat pump water heater

At a glance

Minimum air volume
Typically 700 to 1,000 cu ft
Ambient floor
Efficiency drops below about 45°F
Condensate
Gravity drain or condensate pump
R406 contribution
Up to 2.5 credits, split system
Detail

Sizing and equipment selection for a heat pump water heater

Tank sizing for a heat pump water heater is not the same exercise as sizing a resistance tank. Because recovery in heat pump mode is slower, a household with several showers in quick succession is usually better served by a larger tank than the equivalent resistance model it is replacing. First hour rating rather than nominal tank volume is the figure to compare.

Under the Washington energy code's R406 credit structure, an efficient heat pump water heater contributes meaningfully towards the credits a new home needs, with a split-system unit able to contribute up to 2.5 credits. For builders working towards the eight credits a medium sized home requires, that is one of the more economical routes available.

What separates a good job from an average one

  • Air volume at the location decides whether the unit ever runs in heat pump mode. A sealed closet defeats it entirely unless it is ducted.
  • Condensate is continuous during operation, so it needs a real drain or a pump, not a bucket someone intends to empty.
  • Recovery time is slower than a resistance heater in heat pump mode, which matters for households with concentrated hot water demand.
  • The compressor sits on top of the tank, so overall height is greater than the unit it replaces and low basement ceilings occasionally rule out a location.
  • Filter screens on the air intake need cleaning periodically, and in a garage that collects dust they need it more often.

What drives the cost of a heat pump water heater install

700-1000 cu ftAir volume typically required
2-3xEfficiency vs resistance
2.5Maximum R406 credits, split system

The unit itself costs more than an electric resistance tank, and the installation cost depends almost entirely on the condensate route and the electrical supply. A location with a floor drain nearby and an adequate existing circuit is straightforward. One needing a condensate pump and a new circuit run is not.

Where the operating cost saving lands depends heavily on siting. A unit in a warm basement runs in heat pump mode nearly all year. One in an unheated garage spends much of a Spokane winter on its resistance elements, which changes the arithmetic considerably. We will tell you which situation yours is.

How it runs

What happens, in order

Step 01

Assess the location

We measure the air volume at the proposed position, check winter ambient temperature and identify the condensate route.

Step 02

Size on first hour rating

Tank size is chosen against your household's actual peak demand rather than matching the outgoing tank's nominal volume.

Step 03

Remove and install

The old tank is drained and removed, the new unit is set, connected and the condensate route is completed.

Step 04

Commission and explain

Operating mode is set appropriately for the location and season, and we walk you through filter cleaning and the mode settings.

Before we arrive to install a heat pump water heater

Water heater replacement means draining and removing a full tank, so the route out matters as much as the route in.

  1. Clear the path from the water heater to the door completely, since a drained tank still has to be walked out.
  2. Make sure the floor drain or the intended condensate route is accessible and not blocked by storage.
  3. Move anything moisture-sensitive away from the installation area, as some water always ends up on the floor during a changeout.
  4. Locate the main water shutoff and confirm it actually closes, which on older Spokane homes is not a given.
  5. If the unit is going in a garage, clear enough space around it that the intake and exhaust are not against stored boxes or shelving.

Heat pump water heaters carry real weight in new construction compliance. Our Washington energy code guide explains the R406 energy credit structure and where a heat pump water heater fits into reaching the required total. Read the guide.

Frequently asked questions

Can a heat pump water heater go in my garage?
Often yes, but Spokane winters make it a real decision rather than a default. Below roughly 45°F ambient these units lose efficiency sharply and lean on their resistance elements, so an unheated garage means much of the winter runs at ordinary electric water heater efficiency. We will tell you honestly how that affects your situation.
Why does the room get cold when it runs?
Because that is exactly how it works. The unit extracts heat from the surrounding air and puts it into the tank, so the room cools and dries slightly while it operates. In a garage or large basement this is usually irrelevant. Next to a finished living space it is worth discussing before installation.
Does a heat pump water heater need a drain?
It produces condensate continuously while running, so it needs either a gravity drain with proper fall or a condensate pump. This is one of the most common things people are not told before installation, and it occasionally rules out an otherwise good location.
Do I need to be present while you install my water heater?
Someone needs to let us in and be available while the water is shut off. We also want two minutes with you at the end to explain the operating modes, because leaving it in the wrong mode is the single most common reason people think the unit is not saving them anything.
Do you offer free quotes for heat pump water heaters?
Yes, and the quote visit includes checking the air volume and condensate options at your intended location. That check is the part that determines whether the unit will actually perform, so it happens before any numbers are given.
Will it recover fast enough for my household?
Compare first hour rating rather than tank size. In heat pump mode recovery is slower than a resistance heater, so households with several back to back showers often want a larger tank than the one they are replacing. We size on your actual peak demand.

Heat Pump Water Heaters in Spokane

Phone
509-352-6630
Quote
Free, includes the load calculation measurements
Typical duration
Up to 2.5 credits, split system
Service area
Spokane County, WA and Post Falls, ID

Heat Pump Water Heaters in Spokane, WA

Call for a load calculation and an itemised quote. You keep the numbers either way.
